Mastering the caliper reading chart is essential for anyone working in precision measurement, whether in machining, engineering, or quality control. Calipers are versatile tools that provide accurate measurements, but understanding their reading chart can be daunting for beginners. This guide will walk you through the process step-by-step, ensuring you can read calipers confidently in minutes. By the end, you’ll be equipped with the knowledge to handle both vernier calipers and digital calipers with ease, enhancing your efficiency and accuracy in any project.
Understanding the Basics of Caliper Reading
Before diving into the chart, it’s crucial to grasp the fundamentals of caliper components. Calipers consist of:
- Main Scale: The fixed scale on the caliper body.
- Vernier Scale (for vernier calipers): The sliding scale used for precise measurements.
- Digital Display (for digital calipers): Shows measurements electronically.
📏 Note: Always ensure the caliper jaws are clean and properly aligned before taking measurements.

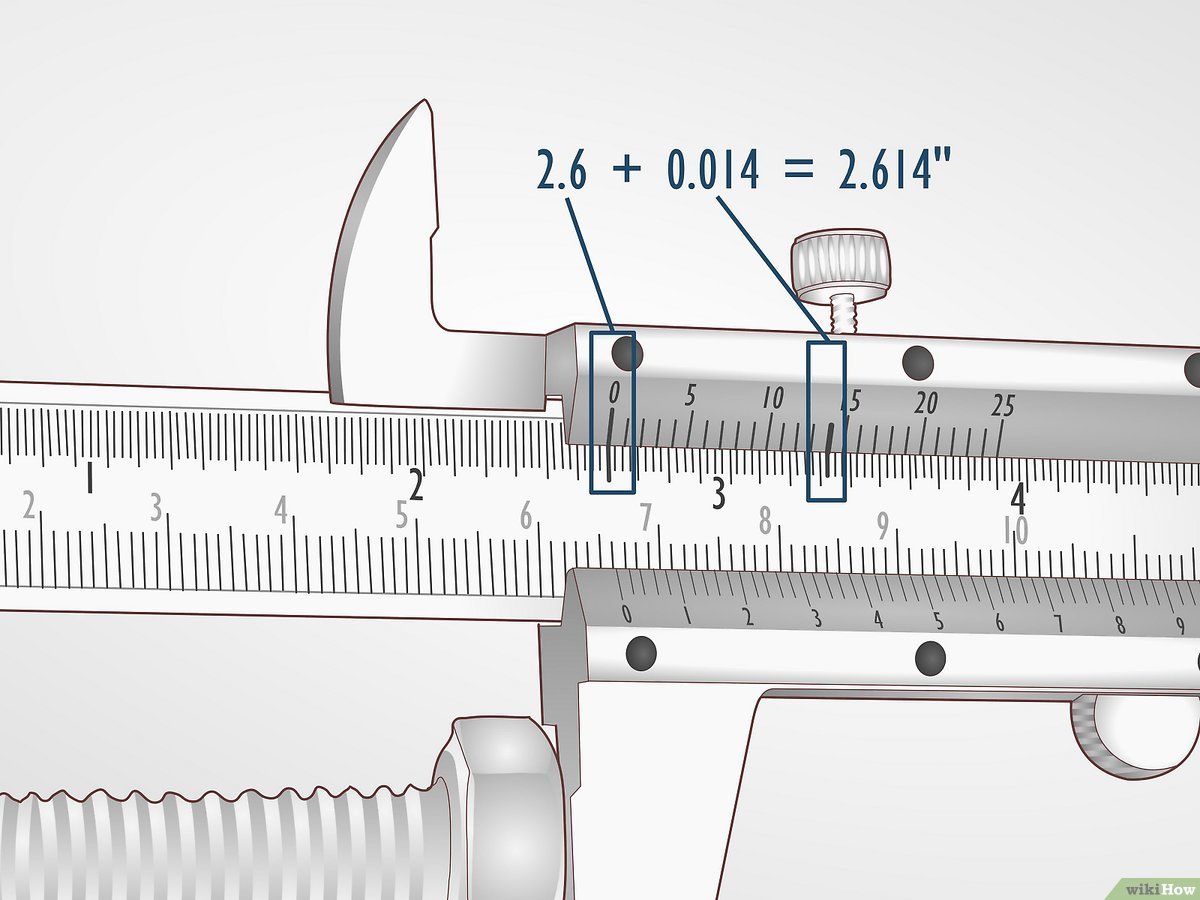

How to Read a Vernier Caliper Chart
Reading a vernier caliper chart involves aligning the scales and interpreting the values. Follow these steps:

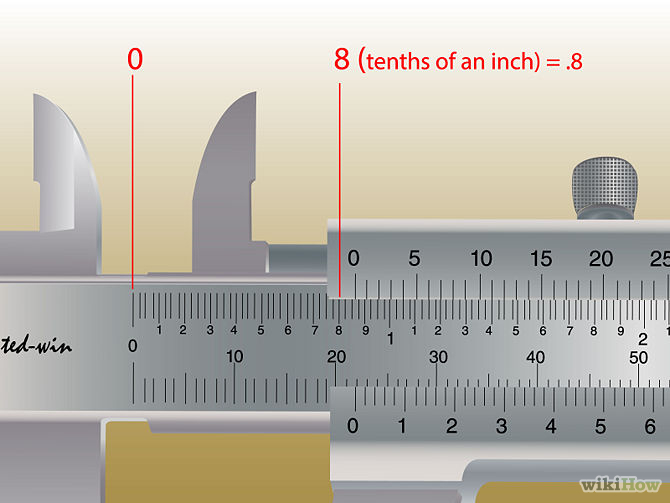

1. Identify the Main Scale Value: Note the whole number on the main scale closest to the zero mark on the vernier scale.
2. Align the Vernier Scale: Find the line on the vernier scale that aligns perfectly with a line on the main scale.
3. Add the Values: Combine the main scale value with the vernier scale reading for the final measurement.
| Vernier Scale Alignment | Additional Value |
|---|---|
| 1st Line | 0.01 mm |
| 2nd Line | 0.02 mm |
| 3rd Line | 0.03 mm |
Mastering Digital Caliper Readings
Digital calipers simplify the process by displaying measurements directly on an LCD screen. Here’s how to use them effectively:
- Turn On the Caliper: Ensure the display is active.
- Zero the Caliper: Place the jaws together and press the “Zero” button to calibrate.
- Take Measurements: Open the jaws to the desired size and read the value on the screen.
🔋 Note: Regularly check the battery life of your digital caliper to avoid inaccurate readings.
Common Mistakes to Avoid
Even experienced users can make errors when reading calipers. Watch out for:
- Misalignment: Ensure the scales are properly aligned.
- Parallax Error: Always view the caliper at eye level to avoid misreading.
- Overlooking Units: Confirm whether the measurement is in millimeters or inches.
Quick Checklist for Caliper Reading
- Clean the caliper jaws before use.
- Align the scales carefully for vernier calipers.
- Zero the digital caliper before measuring.
- Double-check units (mm/inches) to avoid errors.
Final Thoughts
Mastering the caliper reading chart is a valuable skill that enhances precision in any technical field. Whether you’re using vernier calipers or digital calipers, understanding the basics and avoiding common mistakes will ensure accurate measurements every time. With this guide, you’re now equipped to handle calipers confidently, saving time and improving efficiency in your projects.
Related Keywords: caliper reading chart, vernier calipers, digital calipers, precision measurement, machining tools
What is the difference between vernier and digital calipers?
+
Vernier calipers use a sliding scale for manual readings, while digital calipers display measurements electronically, offering quicker and more straightforward results.
How do I avoid parallax error when reading calipers?
+
Always view the caliper at eye level, ensuring the scales are directly aligned to avoid misreading the measurement.
Can I use calipers for both internal and external measurements?
+
Yes, calipers are designed for both internal (e.g., hole diameters) and external (e.g., object widths) measurements.
