Understanding DME: Distance Measuring Equipment Simplified

Navigating the skies safely and efficiently requires advanced technology, and Distance Measuring Equipment (DME) plays a pivotal role in modern aviation. Whether you're a pilot, aviation enthusiast, or someone curious about how aircraft determine their position, understanding DME is essential. This blog breaks down the complexities of DME into simple, digestible information, ensuring you grasp its functionality, importance, and applications. From its role in air navigation to its integration with other systems, we’ll cover everything you need to know. Let’s dive into the world of DME and explore how it simplifies distance measurement in aviation, (aviation technology, air navigation, aircraft systems)

What is Distance Measuring Equipment (DME)?

Distance Measuring Equipment (DME) is a radio navigation technology used in aviation to measure the slant range distance between an aircraft and a ground-based transponder. By transmitting and receiving signals, DME provides pilots with precise distance information, aiding in navigation, approach, and en-route operations. It operates in the ultra-high frequency (UHF) band and is a critical component of modern aviation systems. (radio navigation, slant range, UHF band)

How Does DME Work?

The Basics of DME Operation

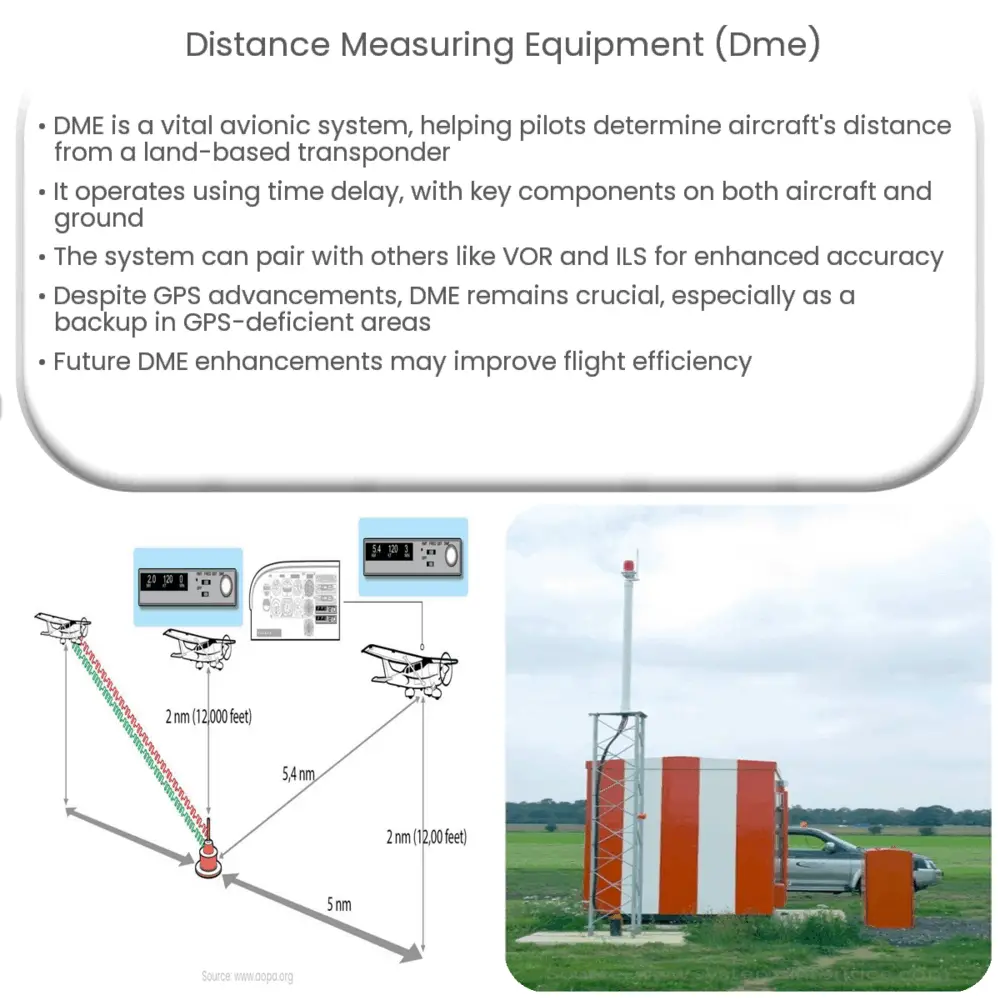

DME works on a simple principle: the aircraft’s interrogator sends a signal to the ground station, which responds with a signal of its own. The time delay between the transmission and reception is used to calculate the distance. This process is repeated continuously to provide real-time distance measurements. (interrogator, ground station, signal transmission)

Key Components of DME

• Interrogator: Installed on the aircraft, it sends paired pulses to the ground station.


• Transponder: Located on the ground, it receives the pulses and responds with a frequency-shifted signal.


• Display Unit: Shows the calculated distance in nautical miles on the aircraft’s cockpit instruments.

(aircraft interrogator, ground transponder, cockpit display)

Applications of DME in Aviation

Navigation and Positioning

DME is integral to navigation systems like VOR/DME, where it complements Very High Frequency Omnidirectional Range (VOR) to provide both bearing and distance information. This combination allows pilots to accurately determine their position relative to a ground station. (VOR/DME, navigation systems, position fixing)

Approach and Landing

During instrument approaches, DME assists pilots in maintaining the correct distance from the runway, ensuring a safe and precise landing. It’s especially crucial in low-visibility conditions. (instrument approach, runway alignment, low-visibility operations)

Advantages of Using DME

• Accuracy: Provides precise distance measurements within a few meters.


• Reliability: Operates independently of weather conditions, unlike visual navigation aids.


• Versatility: Compatible with various aviation systems, including GPS and autopilot.

(precision navigation, weather-independent, system integration)

✈️ Note: DME is most effective within a range of 190 nautical miles, beyond which accuracy may decrease.

Distance Measuring Equipment (DME) is a cornerstone of aviation technology, offering pilots accurate and reliable distance measurements essential for safe navigation and landing. By understanding its operation, components, and applications, you can appreciate its role in modern air travel. Whether you’re a professional pilot or an aviation enthusiast, DME’s simplicity and effectiveness make it an indispensable tool in the skies. (aviation safety, pilot tools, air travel technology)
