Understanding the moment of inertia for a rectangle is crucial in engineering and physics, especially when analyzing structural behavior under loads. This guide will walk you through the step-by-step process of calculating the moment of inertia for a rectangle, ensuring clarity and precision.
What is Moment of Inertia?
The moment of inertia, often denoted as ( I ), is a measure of an object’s resistance to rotational motion around a specific axis. For a rectangle, it depends on the dimensions (length and width) and the axis of rotation.

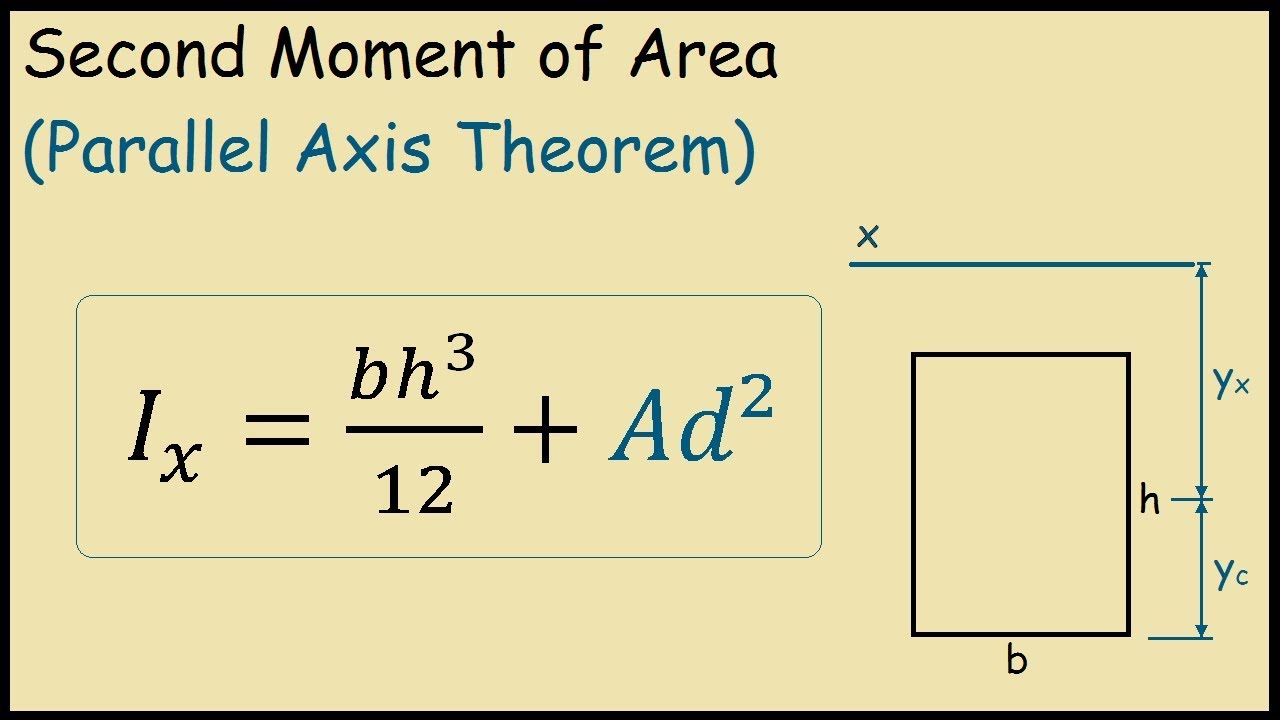

Formula for Moment of Inertia of a Rectangle
The moment of inertia for a rectangle can be calculated using the following formulas:
About the Centroidal Axis (Parallel to Width):
[ I = \frac{1}{12} b h^3 ]
Where:- ( b ) = width of the rectangle
- ( h ) = height of the rectangle
- ( b ) = width of the rectangle
About the Centroidal Axis (Parallel to Height):
[ I = \frac{1}{12} h b^3 ]
| Axis Orientation | Formula |
|---|---|
| Parallel to Width | I = \frac{1}{12} b h^3 |
| Parallel to Height | I = \frac{1}{12} h b^3 |
Step-by-Step Calculation
- Identify Dimensions: Measure the width (( b )) and height (( h )) of the rectangle.
- Choose Axis: Determine whether you’re calculating the moment of inertia parallel to the width or height.
- Apply Formula: Use the appropriate formula based on the chosen axis.
- Calculate: Substitute the values into the formula and compute the result.
📘 Note: Ensure all measurements are in consistent units (e.g., meters or inches) to avoid errors.
Practical Applications
Understanding the moment of inertia is essential for:
- Designing beams and structures in civil engineering.
- Analyzing rotational dynamics in mechanical systems.
- Calculating stress and deflection in materials.
Checklist for Calculating Moment of Inertia
- [ ] Measure rectangle dimensions (( b ) and ( h )).
- [ ] Determine the axis of rotation.
- [ ] Use the correct formula based on the axis.
- [ ] Verify units and calculations for accuracy.
By following these steps, you can accurately calculate the moment of inertia for a rectangle, ensuring precise engineering and physics applications.
What is the moment of inertia for a rectangle?
+The moment of inertia for a rectangle measures its resistance to rotational motion around a specific axis, calculated using formulas based on its dimensions.
How do I choose the correct formula for moment of inertia?
+Select the formula based on the axis of rotation: parallel to width ( I = \frac{1}{12} b h^3 ) or parallel to height ( I = \frac{1}{12} h b^3 ).
Why is moment of inertia important in engineering?
+It helps in designing structures, analyzing stress, and understanding rotational dynamics in mechanical systems.
